U2

Net module

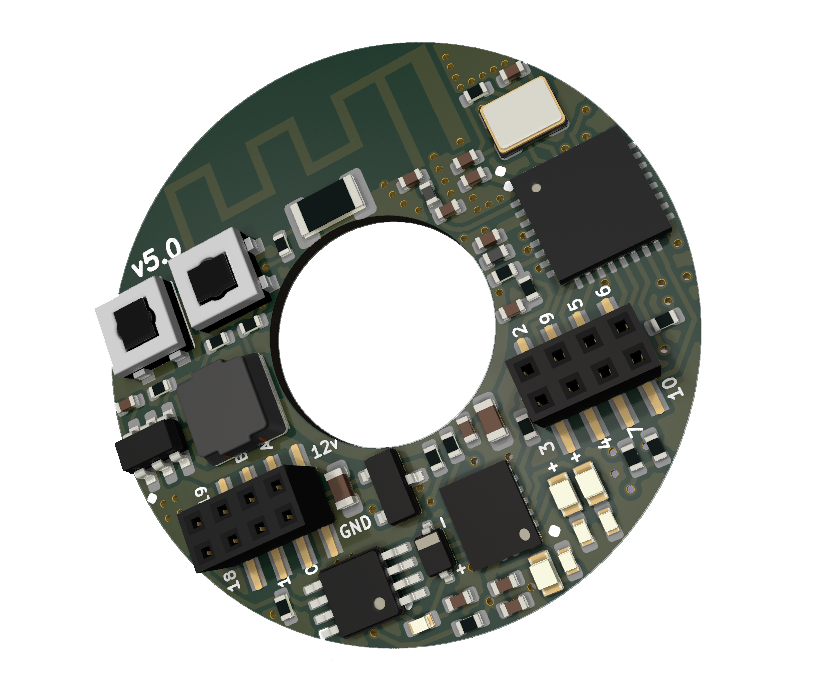

Net module top view

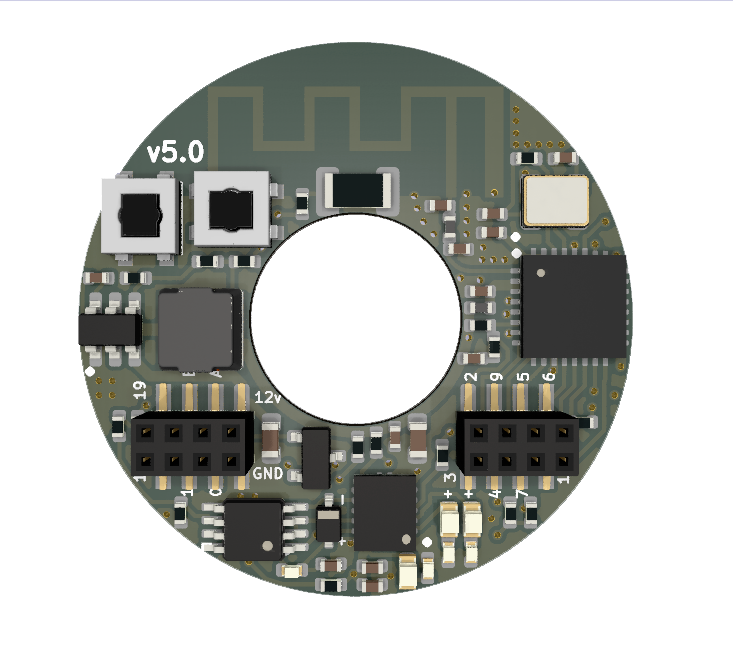

Net module angled view

Pin and connectors

Chipesp32-c3
RS485 Modbus+A · −B
RadioWi-Fi · Bluetooth 5
Power input5–24 V
Pin socket 1.272 × 8 (16 pin)
Buttonsreset · program
Photoresistor on boardyes
Temperature sensor on boardyes
DimensionsD 27 mm · hole 10,5 mm

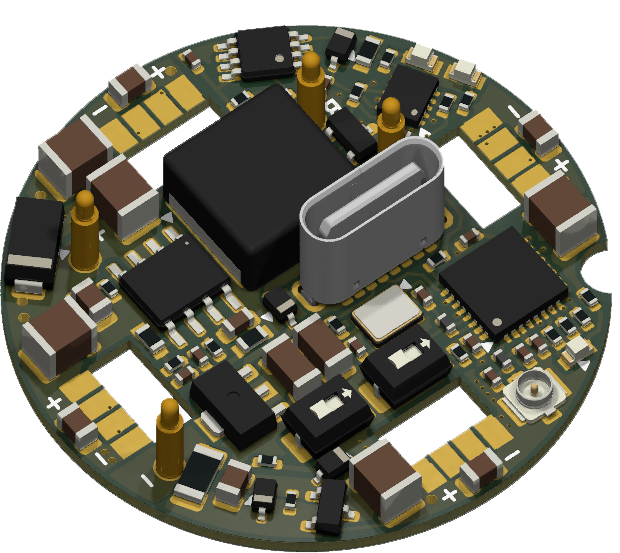

Net module v8 top view

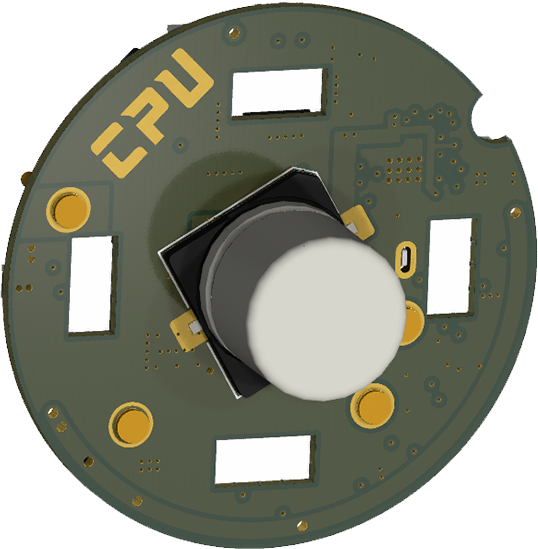

Net module v8 angled view

Pin and connectors · v8

Chipesp32-c3
GPIO RS485 (+A −B)28 · 27
GPIO out or input0,1,3,4,5,6,7,10
GPIO USB18 · 19
RadioWi-Fi · Bluetooth 5
Power input5–100 V
Soft start20 ms
Pin spring4 × 4 (16 pin)
Buttonsreset · boot
POGO 4pin+A · −B · GND · +100V
DimensionD = 32 mm
